High Quality Factory Price Taper Roller Bearing 33111

Short Description:

HZK high precision taper roller bearing 33111


  • twitter3
  • facebook_facebook52
  • ins
  • Linkedin
  • Linkedin

Product Detail

Product Tags

Product Description

Taper Roller Bearing 33111

Tapered roller bearings are separate bearings, and the inner and outer rings of the bearing have tapered raceways.



This type of bearing is divided into different structural types such as single row, double row and four row tapered roller bearings according to the number of rows of rollers installed. Single row tapered roller bearings can withstand radial loads and axial loads in a single direction.



When the bearing is subjected to a radial load, an axial component will be generated, so that another bearing that can withstand the axial force in the opposite direction is needed to balance.

Bearing Number 33111
Brand HZK or OEM
Size (mm) 55x95x30
Material GCr15 , stainless steel,carbon steel
Precision P0 P6 P5
Cage steel/brass/nylon
Weight (Kg) 0.877
Country of Origin Shandong,China

Product model

TYPE

dxDxB

Weight(kg)

 33108

 40×75×26

 0.51

 33109

 45×80×26

 0.552

 33111

 55×95×30

 0.877

 33112

 60×100×30

 0.91

 33113

 65×110×34

 1.32

 33114

 70×120×37

 1.71

 33115

 75×125×37

 1.796

 33116

 80×130×37

 1.88

 33117

 85×140×41

 2.51

 33118

 90×150×45

 3.216

 33119

 95×160×49

 -

 33120

 100×165×52

 -

 33121

 105×175×56

 -

 33122

 110×180×56

 -

 33122

 110×180×56

 5.53

 33124

 120×200×62

 -

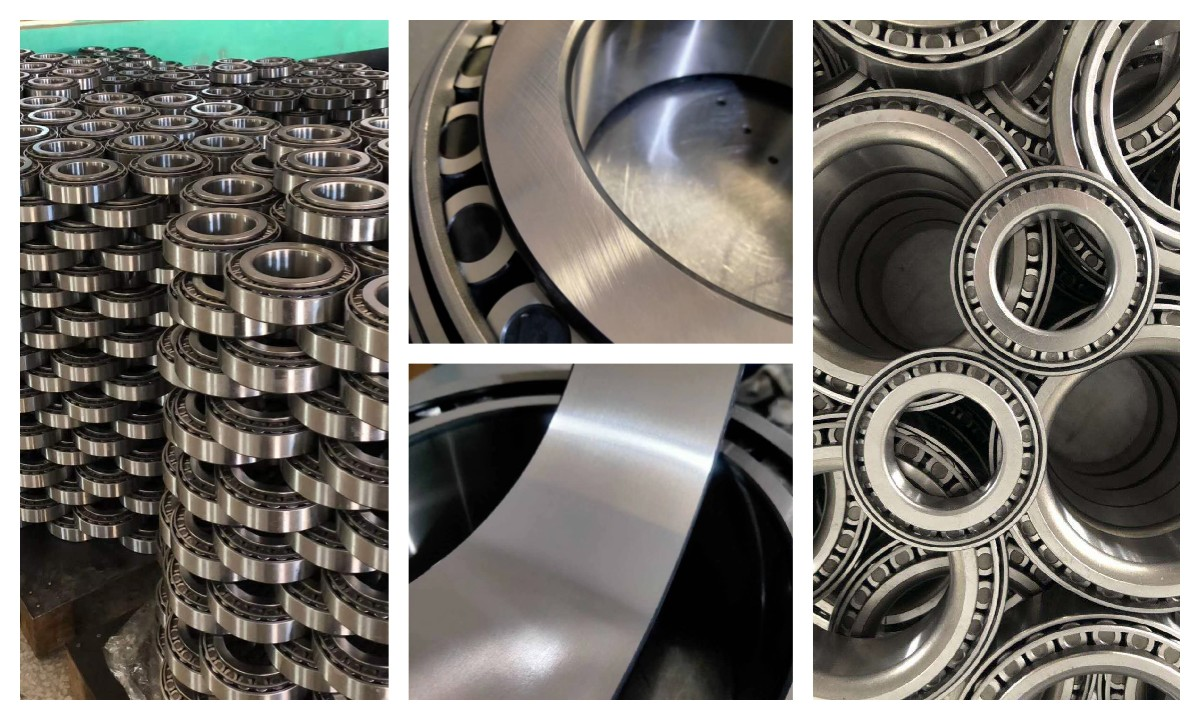

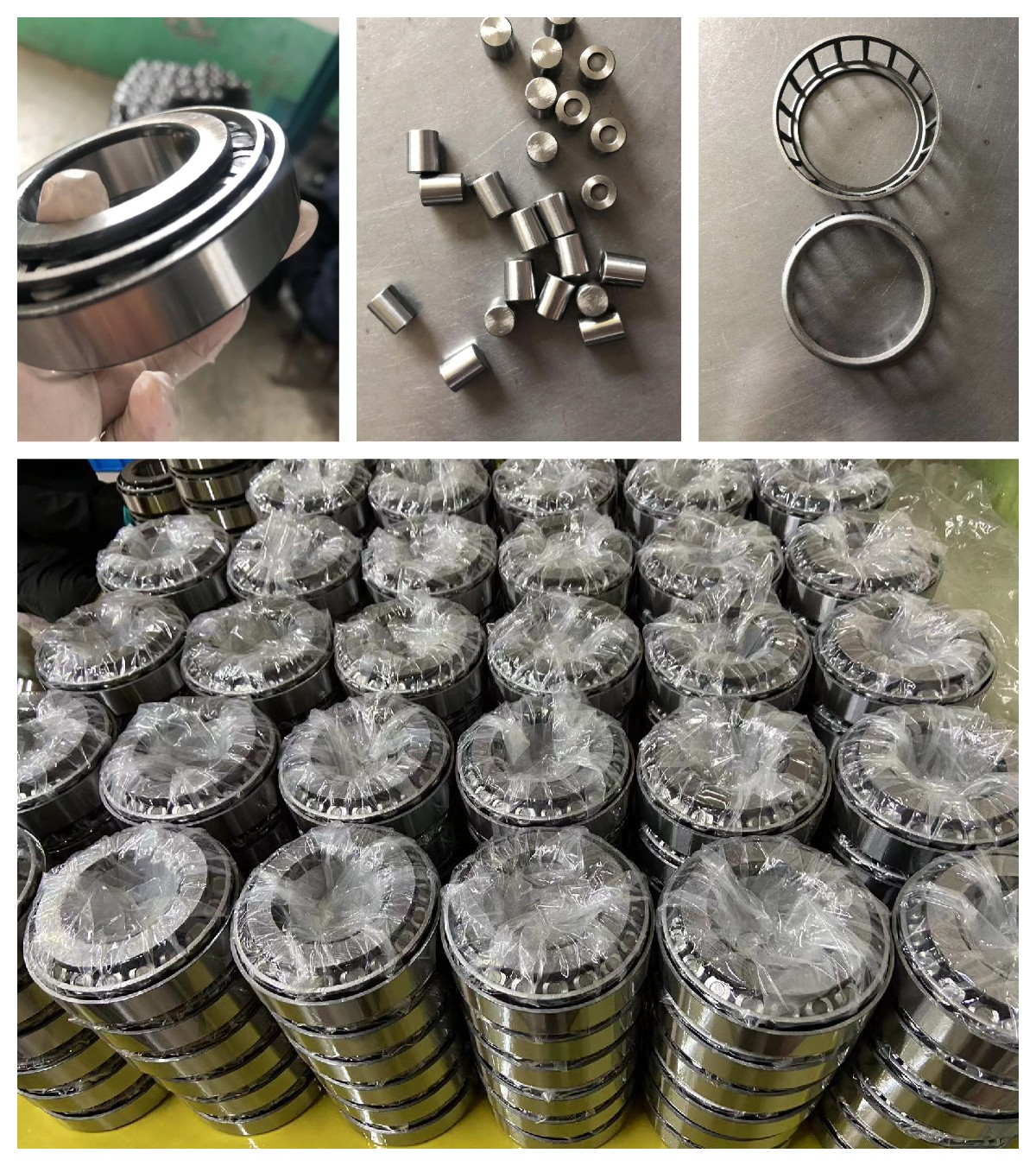

Factory Show


Large Taper Roller Bearing

HZK Taper roller bearing(30200,30300,31300,32000,32200,32300,33000,33100,33200 series)



–Heat treatment of Bainite



–German grinding process secondary tempering stability.



–The whole series of high-precision production P6 P5 level


FAQ

Q: Are you trading company or factory?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it is 15-20 days if the bearings need customized with your own logo.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but you will pay the ticket for the goods!

HZK BEARING FACTORY WELCOME YOUR INQUIRY ANYTIME!!!
