High Precision Deep Groove Ball Bearing 61900

Short Description:


  • twitter3
  • facebook_facebook52
  • ins
  • Linkedin
  • Linkedin

Product Detail

Product Tags

Product Description

Size

62300

Bore Diameter

10mm

Outside Diameter

35mm

Bearing Height

17mm

Net Weight/pcs

0.06kg

Deep groove ball bearings are most representative of the rolling bearing. Widely used in high speed or high speed operation, and very durable, without regular maintenance. This kind of bearing friction coefficient is small, extreme high speed, simple structure, low cost, easy to achieve high manufacturing precision. Size range and diverse,

17

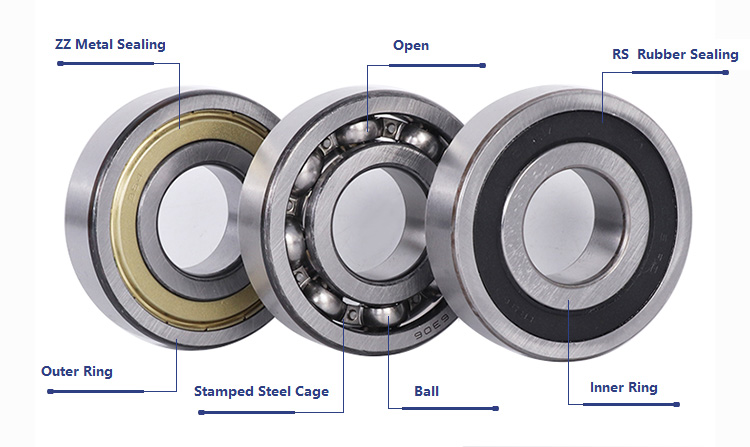

Suffixes Meanings:

OPEN   : no seals on both sides , no frictional resistance , easy relubrication .

RS,2RS : rubber seal on one side or both sides , for high sealing effect against dirt and moisture .

ZZ,2Z   : contactless metal sealing shields on one side or both side , good sealing action against leakage of grease ,long maintenance-free period (lifetime lubrication) .

18
19

Shandong Nice Bearing Manufacture Co. Ltd, established in 1995, is a supplier of bearing, roller bearing ,ball bearing,pillow block bearing, rod ends bearing ,needle roller bearing,screw bearings and slider bearings and slewing support bearings and so on.We have exported more than 100countries like USA, Mexico,Canada, Spain, Russia,Singapore,Thailand, India etc.We are committed to creating a one-stop shopping platform for customers to save time, improve efficiency with the best price and quality to win the trust of customers. Win-win cooperation is our company's business philosophy.

20

BEARING MODELS

TYPE

ZZ

2RS

dxDxB

62300

62300ZZ

 62300-2RS

 10×35×17

62301

62301ZZ

 62301-2RS

 12×37×17

62302

62302ZZ

 62302-2RS

 15×42×17

62303

62303ZZ

 62303-2RS

 17×47×19

62304

62304ZZ

 62304-2RS

 20×52×21

62305

62305ZZ

 62305-2RS

 25×62×24

62306

62306ZZ

 62306-2RS

 30×72×27

62307

62307ZZ

 62307-2RS

 35×80×31

62308

62308ZZ

 62308-2RS

 40×90×33

62309

62309ZZ

 62309-2RS

 45×100×36

62310

62310ZZ

 62310-2RS

 50×110×40

62311

62311ZZ

 62311-2RS

 50×110×40

62312

62312ZZ

 62312-2RS

 60×130×46

62313

62313ZZ

 62313-2RS

 65×140×48

62314

62314ZZ

 62314-2RS

 70×150×51

62315

62315ZZ

 62315-2RS

 75×160×55

62316

62316ZZ

 62316-2RS

 80×170×58

62317

62317ZZ

 62317-2RS

 85×180×60

62318

62318ZZ

 62318-2RS

 90×190×64

62319

62319ZZ

 62319-2RS

 95×200×67

21

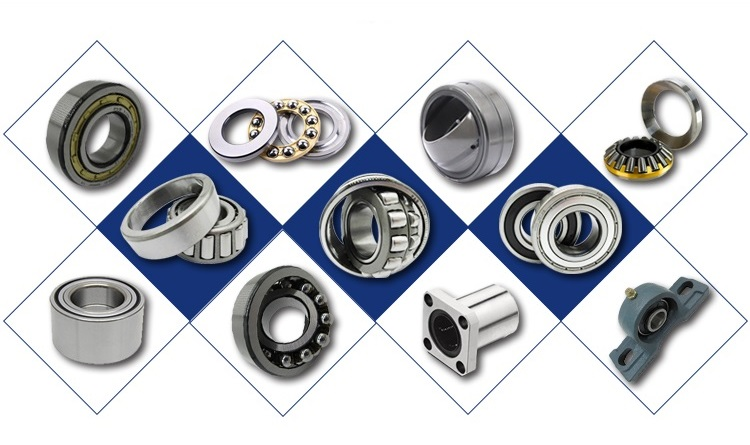

We also produce and supply the bearings as follows,

Main Type Category

Size Serise

Ball Bearings

Deep groove ball bearing 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **,160 **(70001 )
Thrust Ball Bearing 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 **

(91681), 5692 ** (91682) series

Angular Contact Ball bearing SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series
Pillow block bearing 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26**  i.e 2638(3738), 2644 (3844) and so on

Roller Bearings

Taper Roller Bearing 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979),

3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779),

3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas

938/932 single and double row i.e M255410CD etc.

Spherical Roller bearing 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638

(3738), 2644 (3844) and so on

Thrust Roller Bearing 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series.
Cylindrical Roller Bearing NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split

Bearings 412740, 422740 used in cement industry.And FC, FCD series used inSteel Industry.

13

FAQ

1. Your factory how to control the quality?

A: All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.

2. Can you tell me the bearing material?

A: We have chrome steel GCR15, stainless steel, ceramics and other materials.

3. How long is your delivery time?

A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.

4. OEM and custom you can receive?

A: Yes, accept OEM, can also be customized according to samples or drawings for you.
