Spherical roller bearings

Short Description:

Spherical roller bearing has two columns of roller, mainly endure radial load and also withstand any direction of axial load at the same time

Send email to us

Product Detail

Product Tags

Product Description

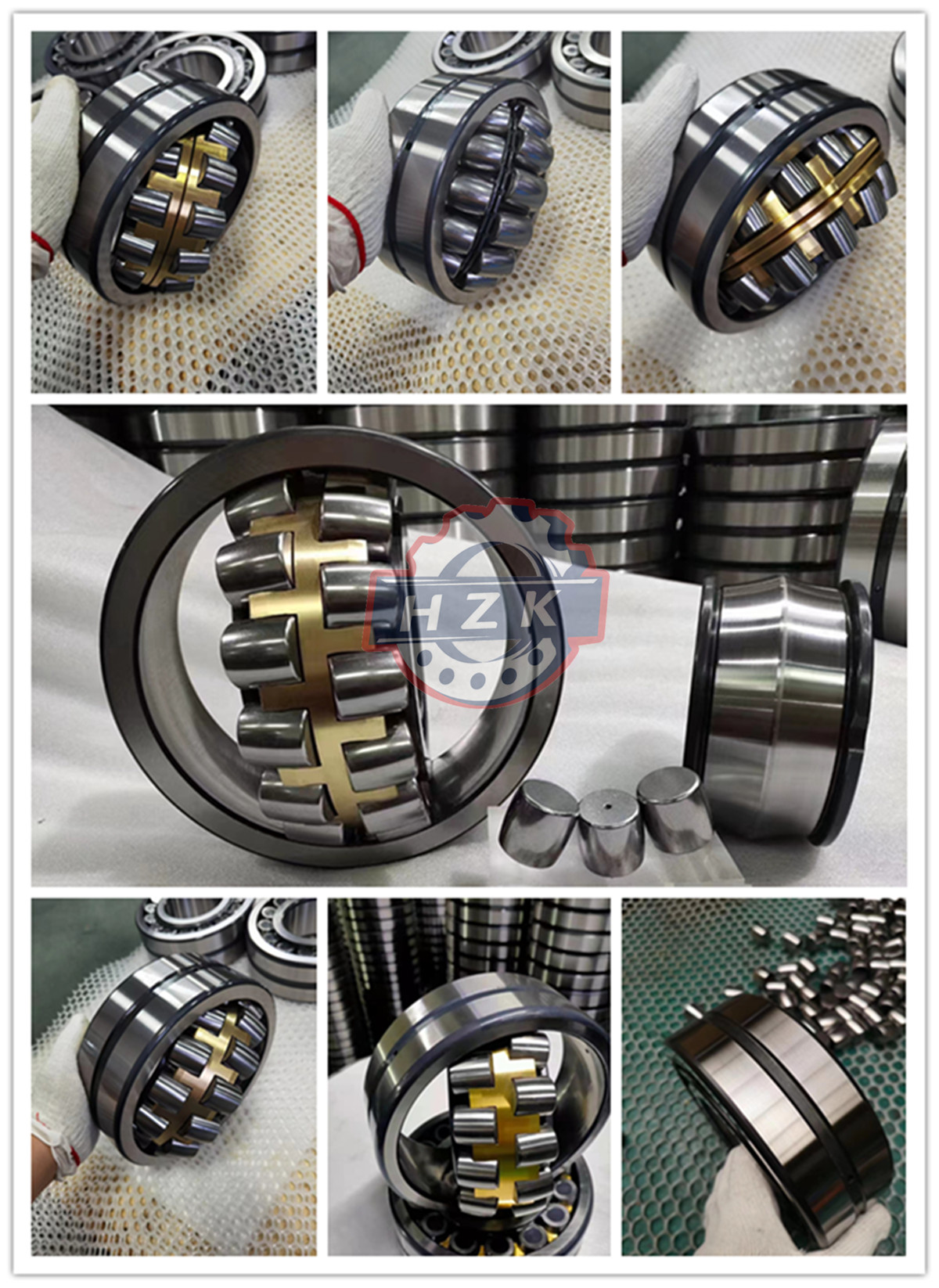

Spherical roller bearings

1. Name: 23020 Spherical Roller Bearing

2. Size: 100*150*37mm

3. Standard: GB-T

4. Certification: ISO9001

Spherical roller bearing has two columns of roller, mainly endure radial load and also withstand any direction of axial load at the same time. This kind of bearing own a high capacity of radial load especially suitable for heavy load or vibration, but can’t bear pure axial load , The outer ring groove of this bearing is spherical, so it's favorable in regulating the heart. Spherical roller bearings and self-aligning ball bearing are the same at the structure theory and character, so they can substitute each other in the permission of load capacity and speed limit.

Model	Old Model	Cage Type	d	D	B	Weight
23020	3053120	CA/CC/MB/MA/E	100	150	37	2.51
23022	3053122	CA/CC/MB/MA/E	110	170	45	3.9
23024	3053124	CA/CC/MB/MA/E	120	180	46	4.2
23026	3053126	CA/CC/MB/MA/E	130	200	52	6.3
23028	3053128	CA/CC/MB/MA/E	140	210	53	6.8
23030	3053130	CA/CC/MB/MA/E	150	225	56	8.2
23032	3053132	CA/CC/MB/MA/E	160	240	60	9.85
23034	3053134	CA/CC/MB/MA/E	170	260	67	12.5
23036	3053136	CA/CC/MB/MA/E	180	280	74	17.2
23038	3053138	CA/CC/MB/MA/E	190	062	75	19.8
23040	3053140	CA/CC/MB/MA/E	200	310	82	23.65
23044	3053144	CA/CC/MB/MA/E	220	340	90	28.9
23048	3053148	CA/CC/MB/MA/E	240	360	92	32.8
23052	3053152	CA/CC/MB/MA/E	260	400	104	63
23056	3053156	CA/CC/MB/MA/E	280	420	106	51
23060	3053160	CA/CC/MB/MA/E	300	460	118	72.1

Features of spherical roller bearings:

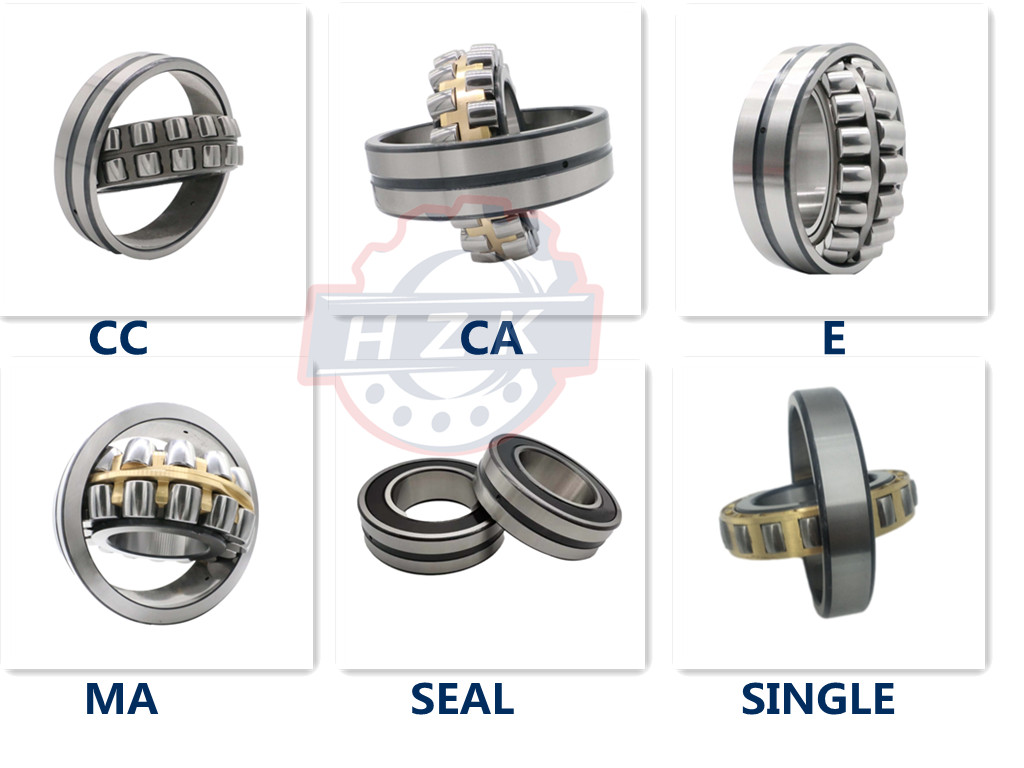

1.Internal Structure and Retainer Material Variation

C: Symmetrical roller, Stamped Steel retainer Spherical Roller Bearing

CA: Symmetrical roller, one-pice brass cage Spherical Roller Bearing

CTN1: Symmetrical roller, nylon cage Spherical Roller Bearing

E: Third generation design. improved stress distribution; offer much longer service life than normal designs Spherical Roller Bearing

Q: Bronze cage Spherical Roller Bearing

MB: Symmetrical roller,Two-pice brass cage Spherical Roller Bearing

EM: Symmetrical roller, Special alloy Integral cage.Spherical Roller Bearing

1. We are Professional bearing factory since 1995. We offer high quality bearing with competitive price.

2. 24-hour response on line and provide technical support.

3. Huge stock goods ensure you Very Short Delivery Time(Generally 1- 3 days after payment for stocks, 15 - 30 days for OEM and new items.

4. Good after-sale service (12 months quality warranty, money can be deducted or refund if any quality problem).

5. OEM/Customized service are welcomed.

6. Various kinds of bearings and brands available.

7.100% test the quality and packing before delivery.

8. Free sample available.

FAQ

1. Your factory how to control the quality?

A: All bearing parts before the production and the production process, strict inspection by 100%, including crack detection, roundness, hardness, roughness, and the geometry size, all bearing meet ISO international standard.

2. Can you tell me the bearing material?

A: We have chrome steel GCR15, stainless steel, ceramics and other materials.

3. How long is your delivery time?

A: If the goods are in stock, usually 5 to 10 days, if the goods are no stock for 15 to 20 days, according to the quantity to determine the time.

4. OEM and custom you can receive?

A: Yes, accept OEM, can also be customized according to samples or drawings for you.
